OVERVIEW:

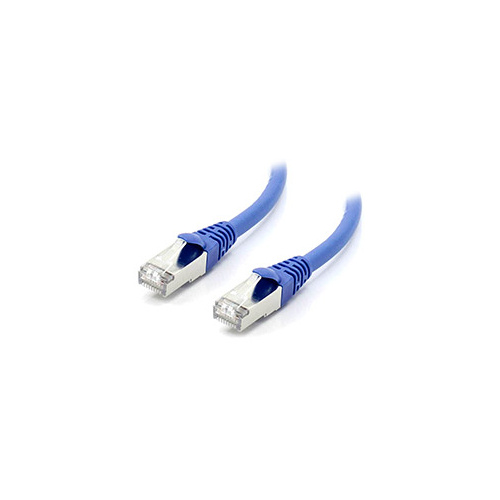

ALOGIC CAT6a shielded snagless patch cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The ALOGIC CAT6a cabling system provides an End to End solution that provides a guaranteed 750 Mhz of usable bandwidth. The ALOGIC CAT6a solution consists of Pre-terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.
ALOGIC CAT6a shielded snagless patch cables come in 10 different colours and a range of lengths from 0.5m to 30m, which lets you colour code your installation.
FEATURES:
- Performance rated for 750 MHz bandwidth
- Suit for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower
- Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage)
- Overall Copper Braided Shielded
- Comes with LSZH (Low Smoke Zero Halogen) Jacket
- Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs
- Snag-free strain relief molded boot provides secure and accurate connection
- Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
- Lifetime Warranty
- A-Tick Complaint as per ACMA requirement
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Complaint to IEC 802.3an standards & ISO/IEC 11801
- UL Approved
Connectors: RJ45 Male to RJ 45 MALE
SPECIFICATIONS:
Vendor |
ALOGIC |
Wiring Scheme: | T568A |
Standard: | Category 6a TIA/EIA-568C-2.1 |
Connector: | 50 micron gold-plated RJ45 |
Temperature Rating: | 75°C |
Voltage Rating : | 30V |
Approvals | A-Tick,ETL,UL,IEEE,RoHS Compliant |
Warranty | Lifetime |
Package Type | Polybag |
Jacket | LSZH (Low Smoke Zero Halogen) |
Connector Type | 8P8C (RJ45) |
Conductor Type | 26AWG (7/0.16), Stranded Bare Copper |
(1652)
SKU | 1652 |
Brand | ALOGIC |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.060m |
Shipping Length | 0.150m |
Shipping Cubic | 0.001800000m3 |
