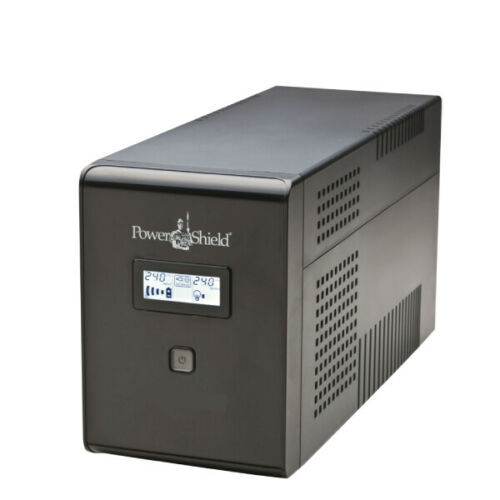

PowerShield Defender 1200VA / 720W Line Interactive UPS with AVR

$219.95
RRP $361.00
SAVE $141.05 (39%)
In Stock


Calculate Shipping

The Defender range uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances. The stylish LCD display, user replacable batteriesand six Australian sockets makes the Defender the complete package at this level.

  • Excellent microprocessor control guarantees high reliability

  • Australian outlets for UPS Protection (x3)

  • Australian outlets for Surge protection (x3)

  • Boost and buck AVR for voltage stabilization

  • User replaceable batteries

  • Silent Operation (No fans included)

  • Auto restart while AC is recovering

  • Off-mode charging

  • Cold start function

  • USB communication with sophisticated NetGuard software

  • All PowerShield UPS models will beep when the battery is low or failing.

  • Usage of the Net Guard software -it can email a message to let the user know that the battery is low or failing on the UPS



Model Name

PSD1200

Topology

Line interactive

INPUT

Voltage 240Vac
   Frequency 50/60Hz (+/-5Hz) Auto Sensing
   Voltage Range 177Vac to 290Vac

OUTPUT

Output Voltage 240Vac
   Output Voltage Regulation 240Vac (+/- 10%)
   Frequency AC mode tracks utility. Battery Mode (50Hz +/-1%)
   Frequency Range (Battery Mode) 50Hz or 60Hz (+/- 1%)
   Transfer Time 2-6 ms, 10ms max (typical)
   Start on Battery Yes
   Waveform (Batt. Mode) Simulated Sine Wave
   VA/Wattage 1200VA/720W

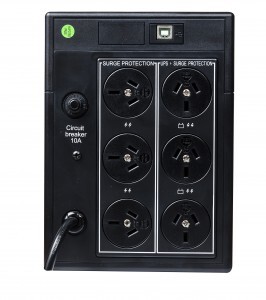

   Numbers of Outlets 6 - (3x Battery backup/surge protected and 3x Surge Protection)

PROTECTION

EMC EN62040-2 2006
   Safety EN62040-1-1 2003, IEC60950-1:2001
   Full Protection Overload, discharge and overcharge protection

BATTERY

User Replaceable Battery 12V*7AH (x2)
   Backup Time (One PC load @ 120W)
   40 minutes

Operation Environment Temperature 0-40C, Humidity 0-90% Non condensing
     Full load backup time 2.5 mins
     Software PowerShield NetGuard supports Windows, Linux, Unix & Apple Mac
     Audible Noise <40dBA
     Recharge Time to 90% 4-6 Hours

COMMUNICATIONS & MANAGEMENT

Battery Mode 2 beeps every 30 sec
   Low Battery Rapid beep (one sec intervals)
   Overload Constant Beeping
   Battery Replacement Alarm Constant Beeping
   Fault

Constant Beeping
     Smart LCD Input voltage
     Output voltage
     AC mode indicator
     Battery mode indicator
     Load level indicator, flashing indicates overload
     Battery capacity indicator, flashing indicates low battery level

COMMUNICATIONS INTERFACE

Interface USB

PHYSICAL

Dimentions (LxWxH) 397x146x205mm
   Weight 11.1kgs

(6393)

SKU 6393
Brand PowerShield
Shipping Weight 11.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.008000000m3
